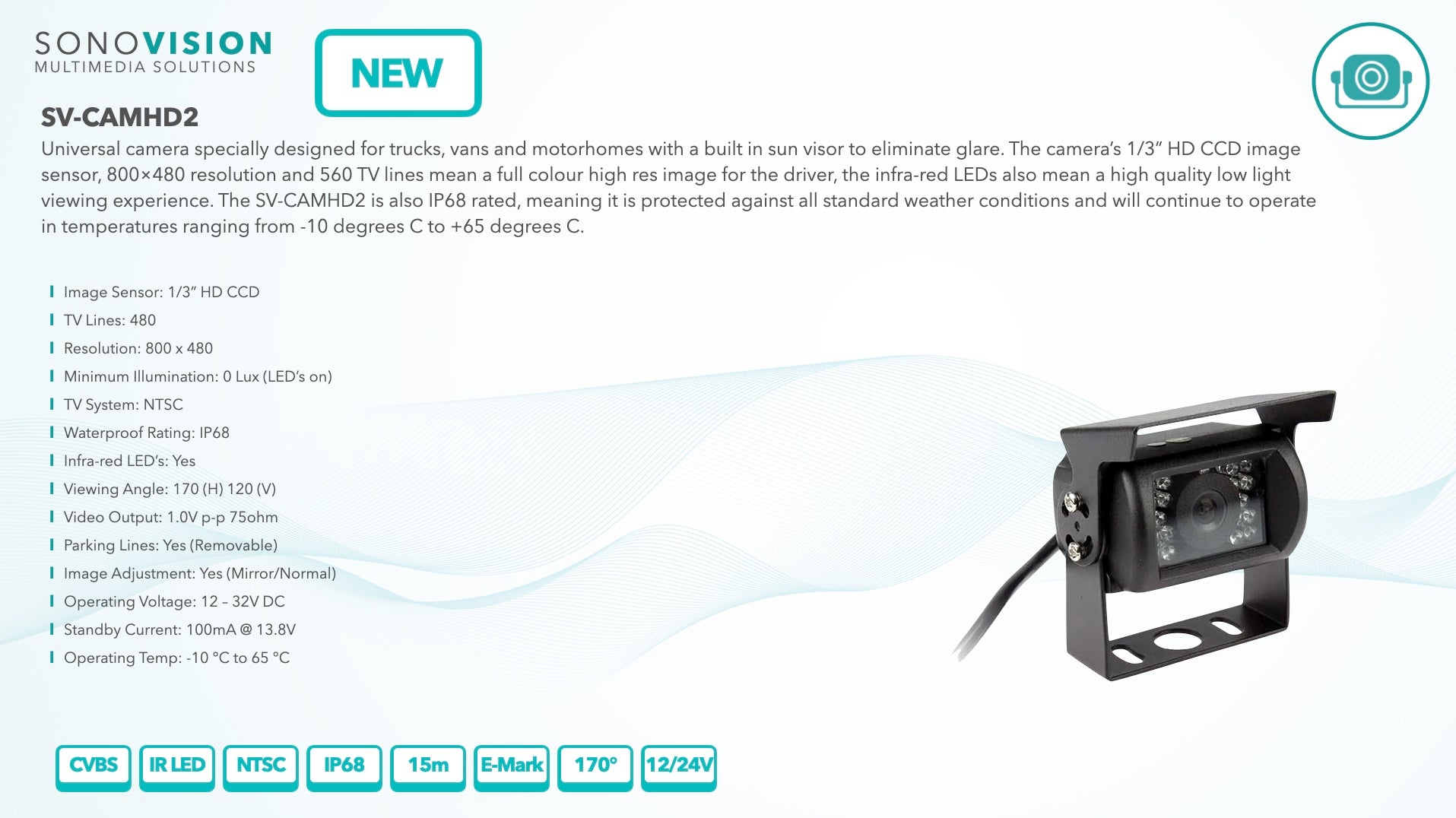

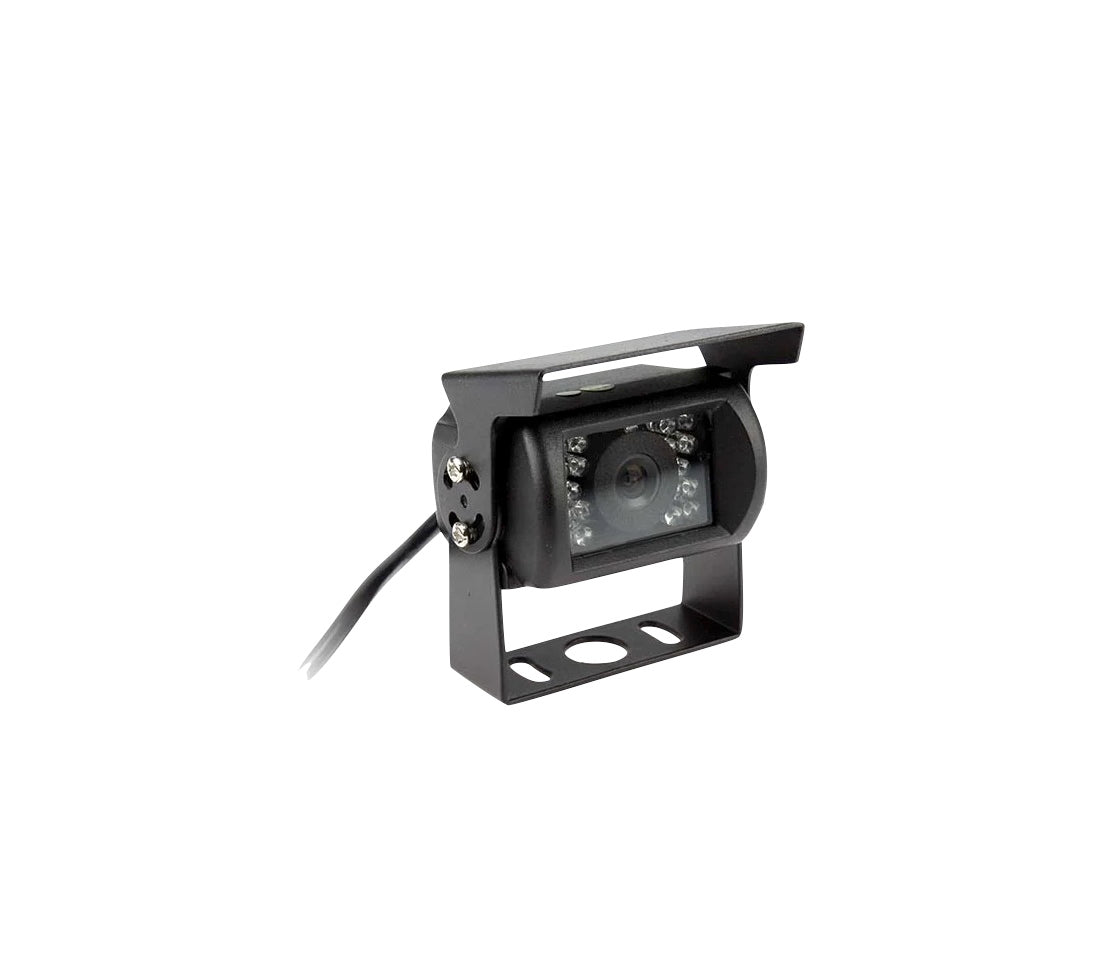

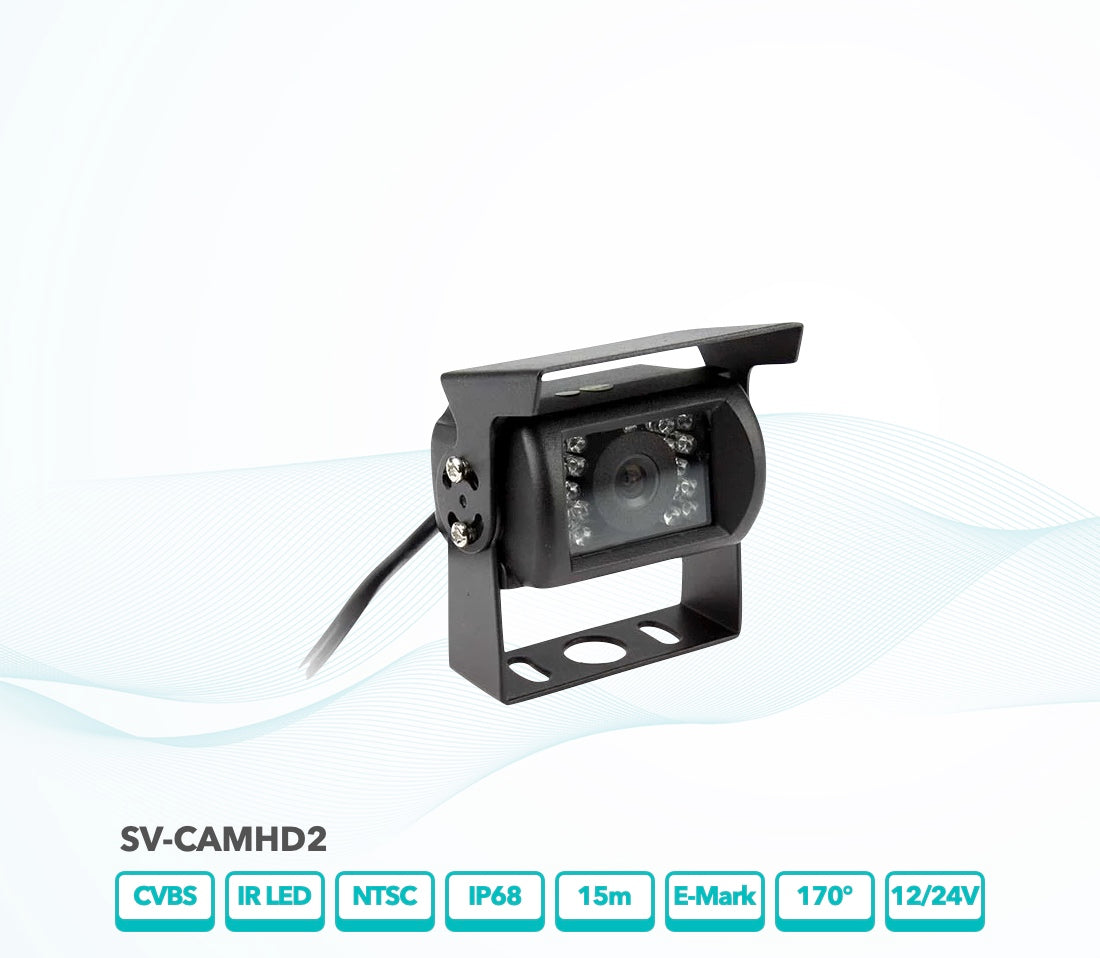

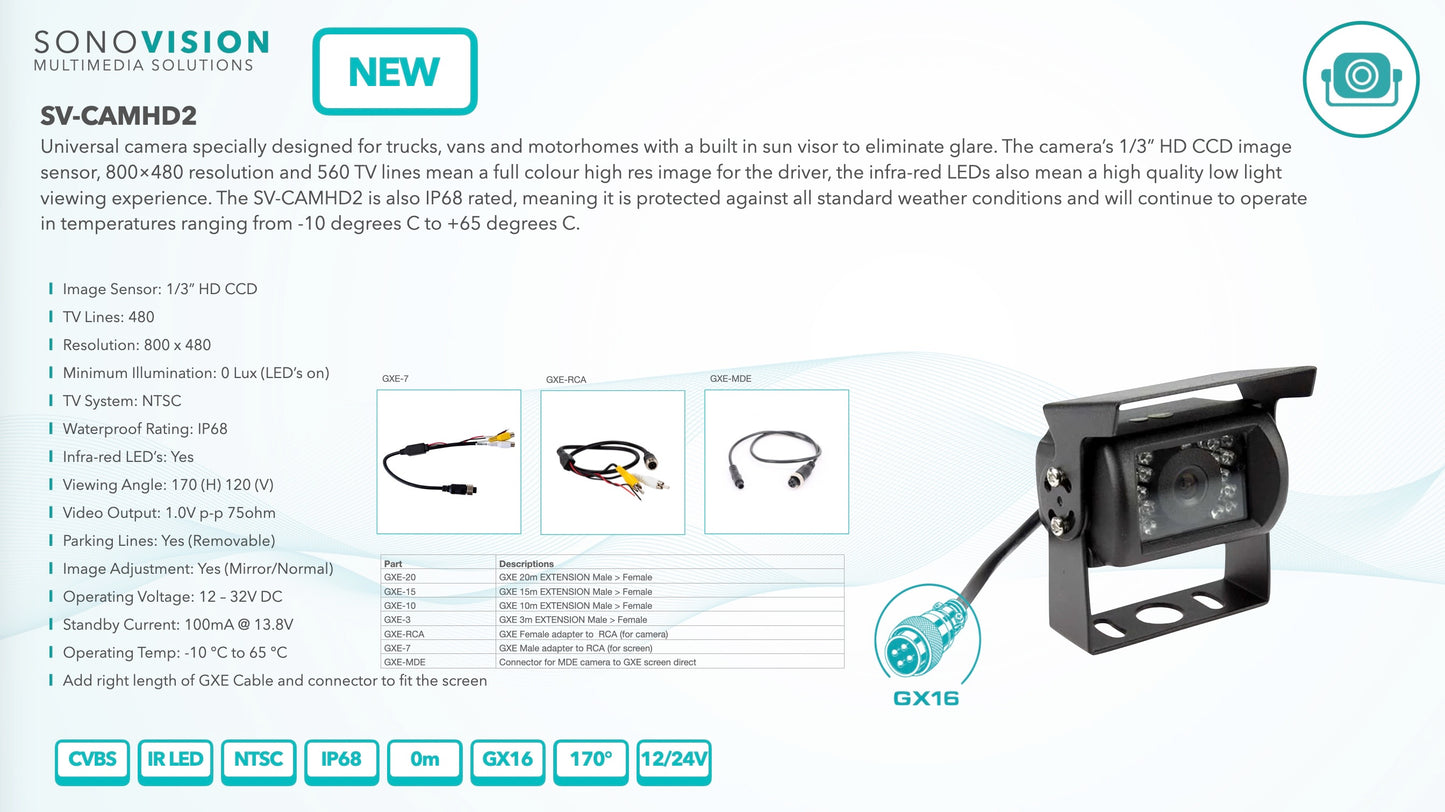

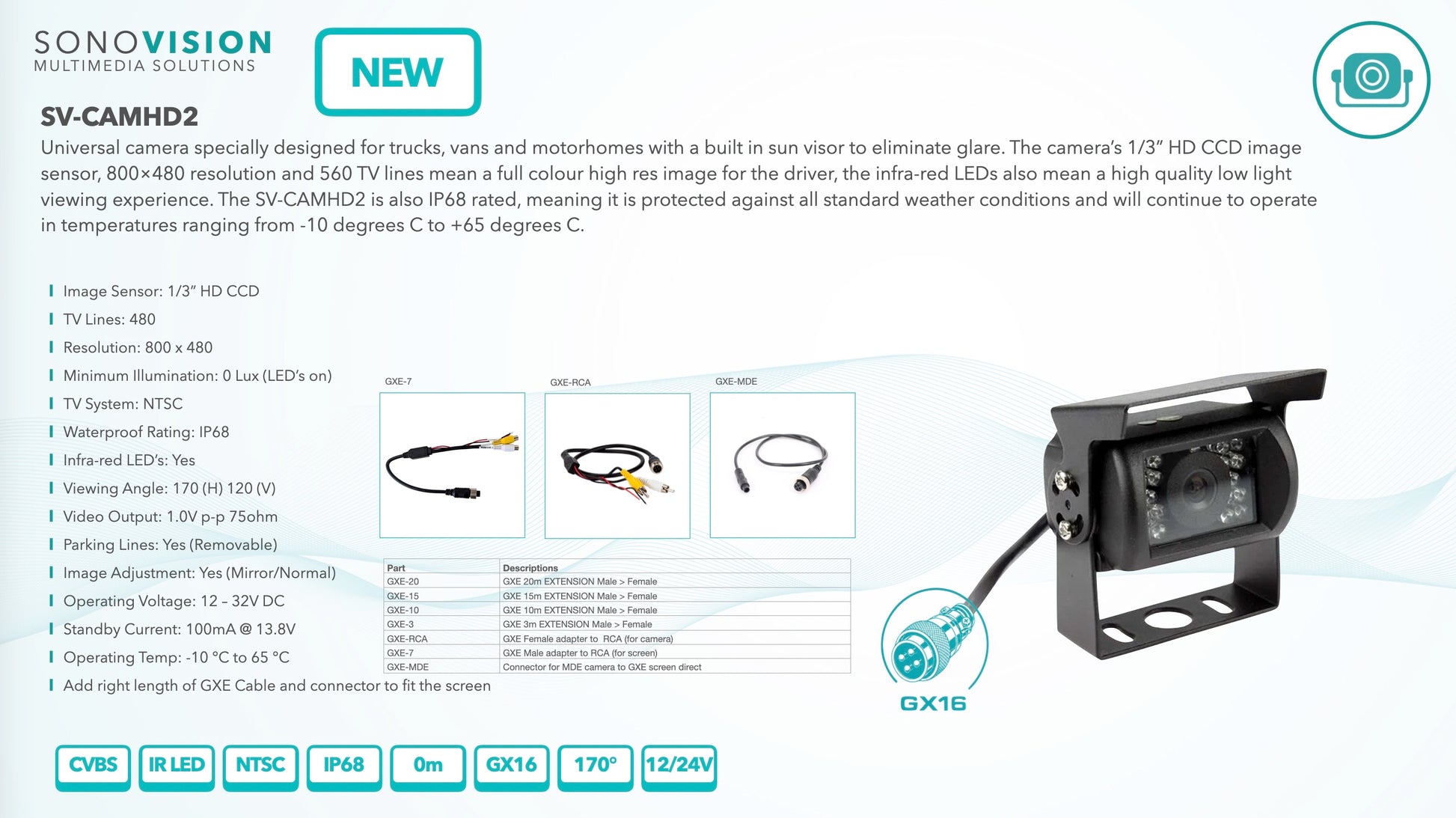

SV-CAMHD2

Universal camera specially designed for trucks, vans and motorhomes with a built in sun visor to eliminate glare. The camera’s 1/3” HD CCD image sensor, 800×480 resolution and 560 TV lines mean a full colour high res image for the driver, the infra-red LEDs also mean a high quality low light viewing experience. The SV-CAMHD2 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -10 degrees C to +65 degrees C.

• Image Sensor: 1/3” HD CCD
• TV Lines: 480
• Resolution: 800 x 480
• Minimum Illumination: 0 Lux (LED’s on)
• TV System: NTSC
• Waterproof Rating: IP68
• Infra-red LED’s: Yes
• Viewing Angle: 170 (H) 120 (V)
• Video Output: 1.0V p-p 75ohm
• Parking Lines: Yes (Removable)
• Image Adjustment: Yes (Mirror/Normal)
• Operating Voltage: 12 – 32V DC
• Standby Current: 100mA @ 13.8V
• Operating Temp: -10 °C to 65 °C
