SV-CAMFX

SV-CAMFX

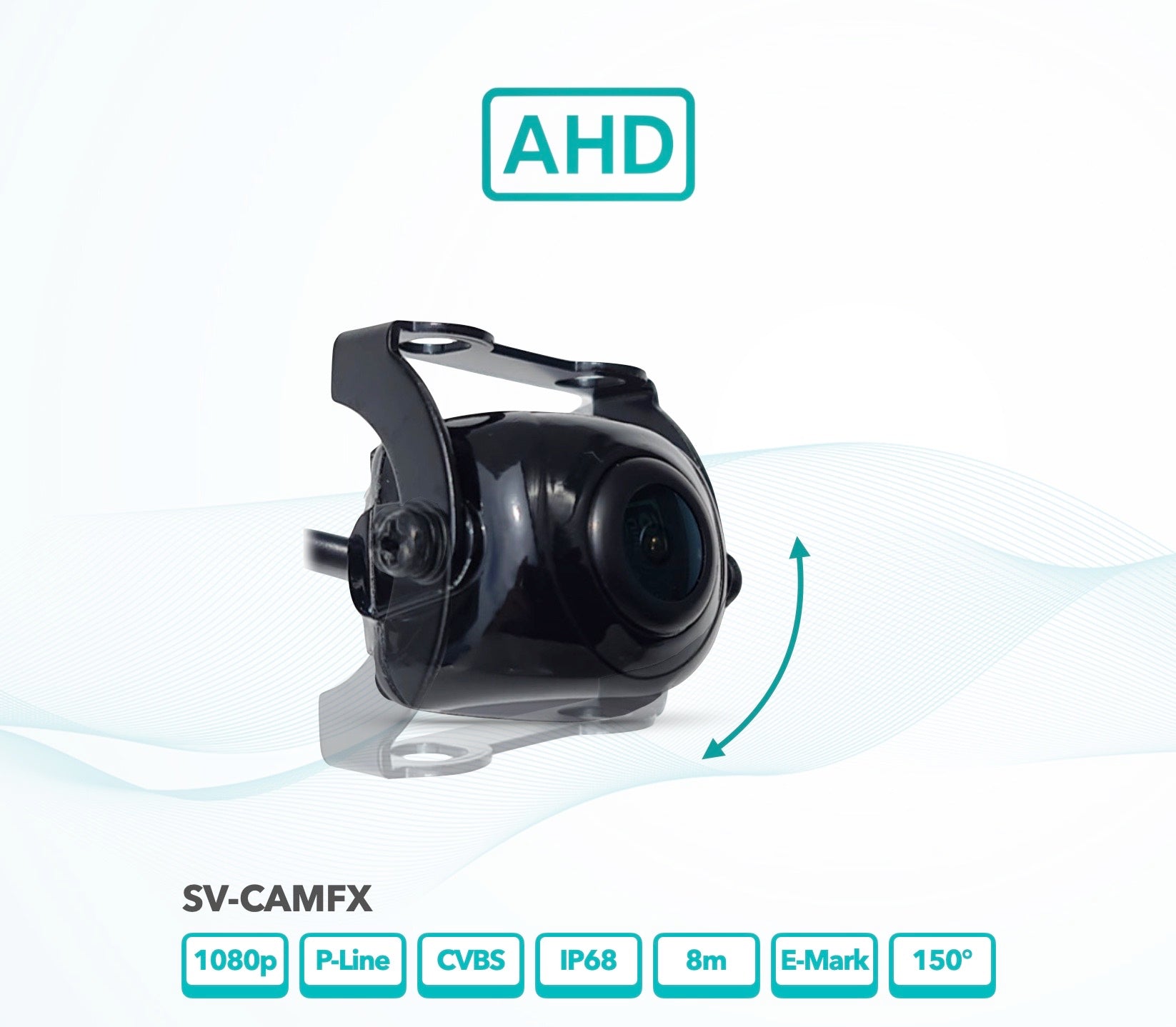

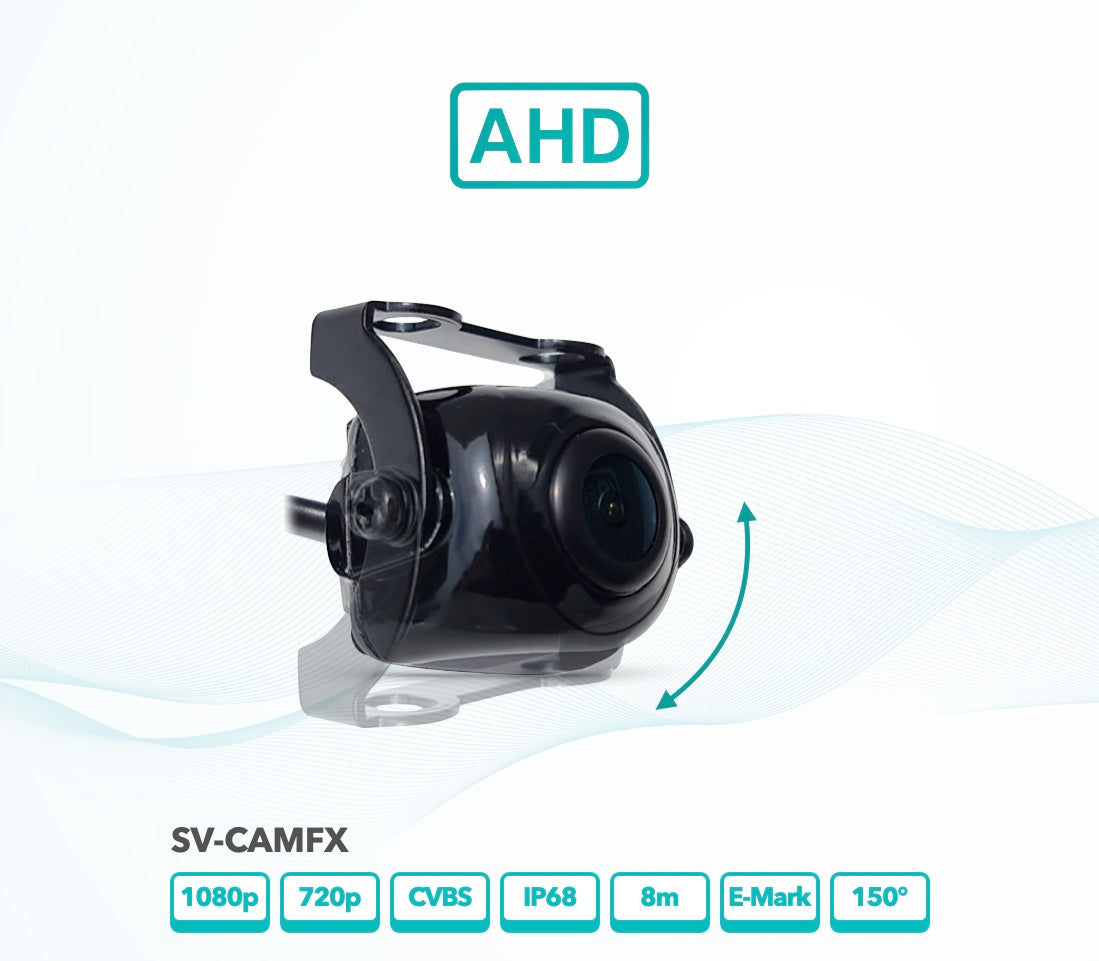

The SV-CAMFX is a flexible universal fit reversing camera with versital bracket that makes it possible to mount it both for under and over hang. It’s specially designed to fit most cars and vans. Featuring a AHD (switchable) image sensor, 600 TV lines and a 150-degree viewing angle the camera gives the driver a smooth clear high res image. The SV-CAMFX is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20degrees C to +70 degrees C.

• CVBS / AHD switchable
• Image Sensor: 1/4" CMOS1336 CMOS/AHD
• TV System: NTSC
• Resolution: 600 TV lines
• Effective Pixels: 976 (H) x 496 (V) ; 1280 (H) x 720P (V)
• View Angle:150°
• Waterproof Grade: IP68
• Minimun illumination: 0.1Lux
• Video output: 1.0VP-P.750hm
• Power supply: DC 12V
• Operating Temperature: -20℃～70℃
• Storage Temperature:-30℃～70℃
• CE / E-mark / FCC / RoHS / UKCA certified

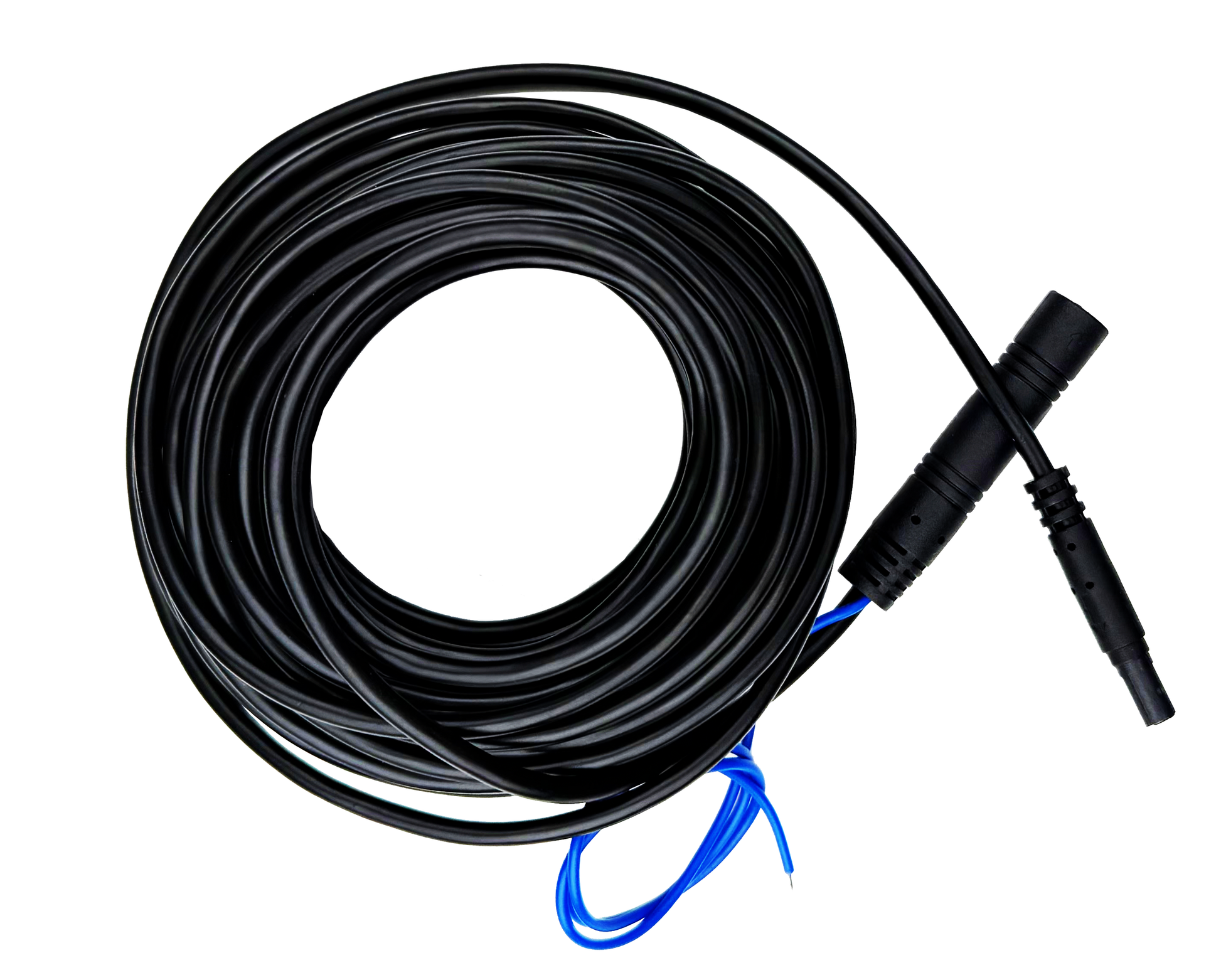

• 8 metre extension cable supplied
• Switchable Parking Guidelines
