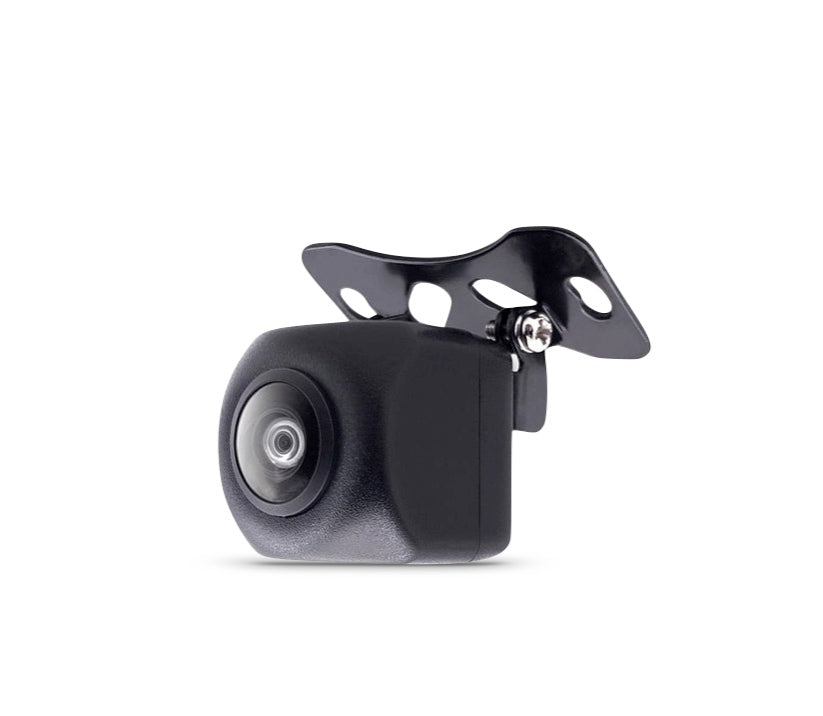

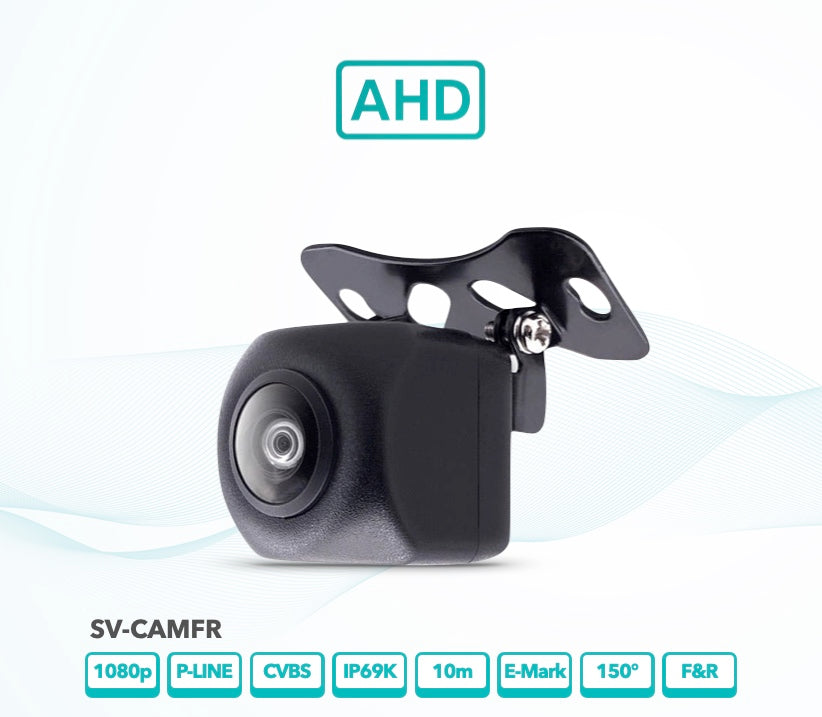

SV-CAMFR

The SV-CAMFR is a flexible universal fit reversing camera with versatile bracket that makes it possible to mount it both for under and over hang. It’s specially designed to fit most cars and vans. Featuring a AHD (switchable) image sensor, 1000 TV lines and a 150-degree viewing angle the camera gives the driver a smooth clear high res image. The SV-CAMFR is also IP69K rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20degrees C to +70 degrees C.

• CVBS / AHD 1080p switchable
• Image Sensor: 1/4" CMOS1336 CMOS/AHD
• TV System: NTSC
• Resolution: 1000 TV lines
• Effective Pixels: 1920(H) x1080(V)
• View Angle: H185° / V120°
• Waterproof Grade: IP69K
• Minimun illumination: 0.1Lux
• Video output: 1.0VP-P.750hm
• Power supply: DC 12V
• Operating Temperature: -20℃～+70℃
• CE / E-mark / FCC / RoHS / UKCA certified
• 10 metre extension cable supplied
• Switchable Parking Guidelines
• Mirror / non-mirror function for front and rear mounting
