SV-CAM3LR

SV-CAM3LR

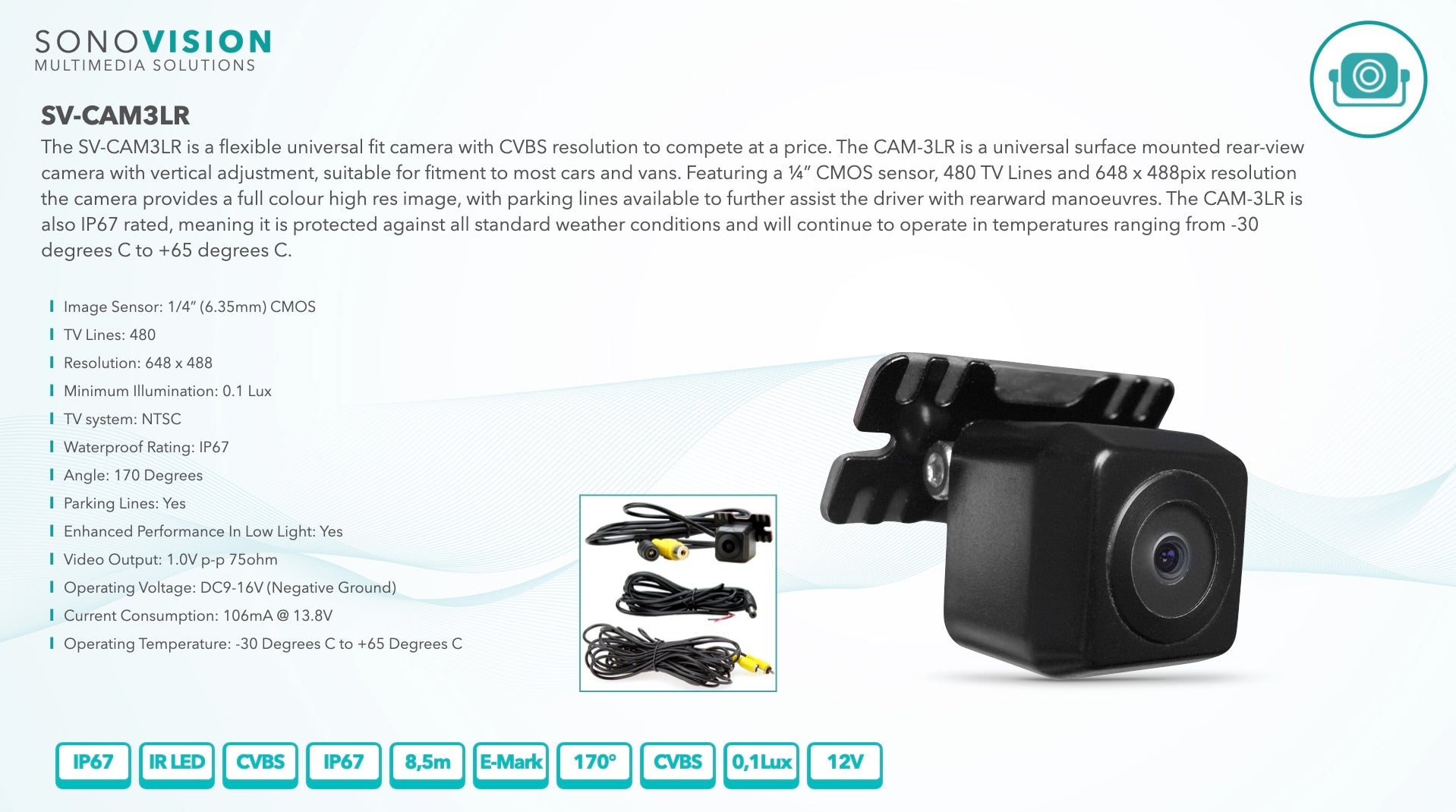

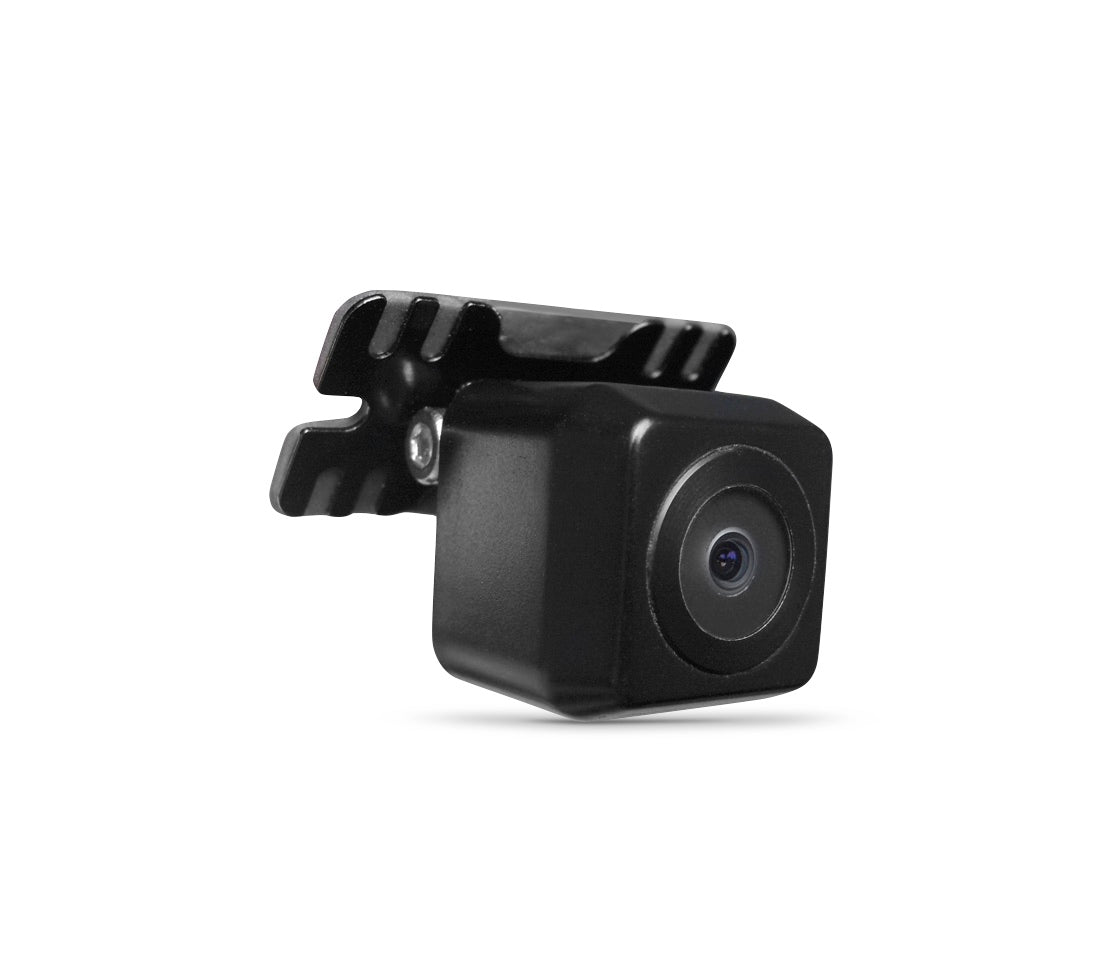

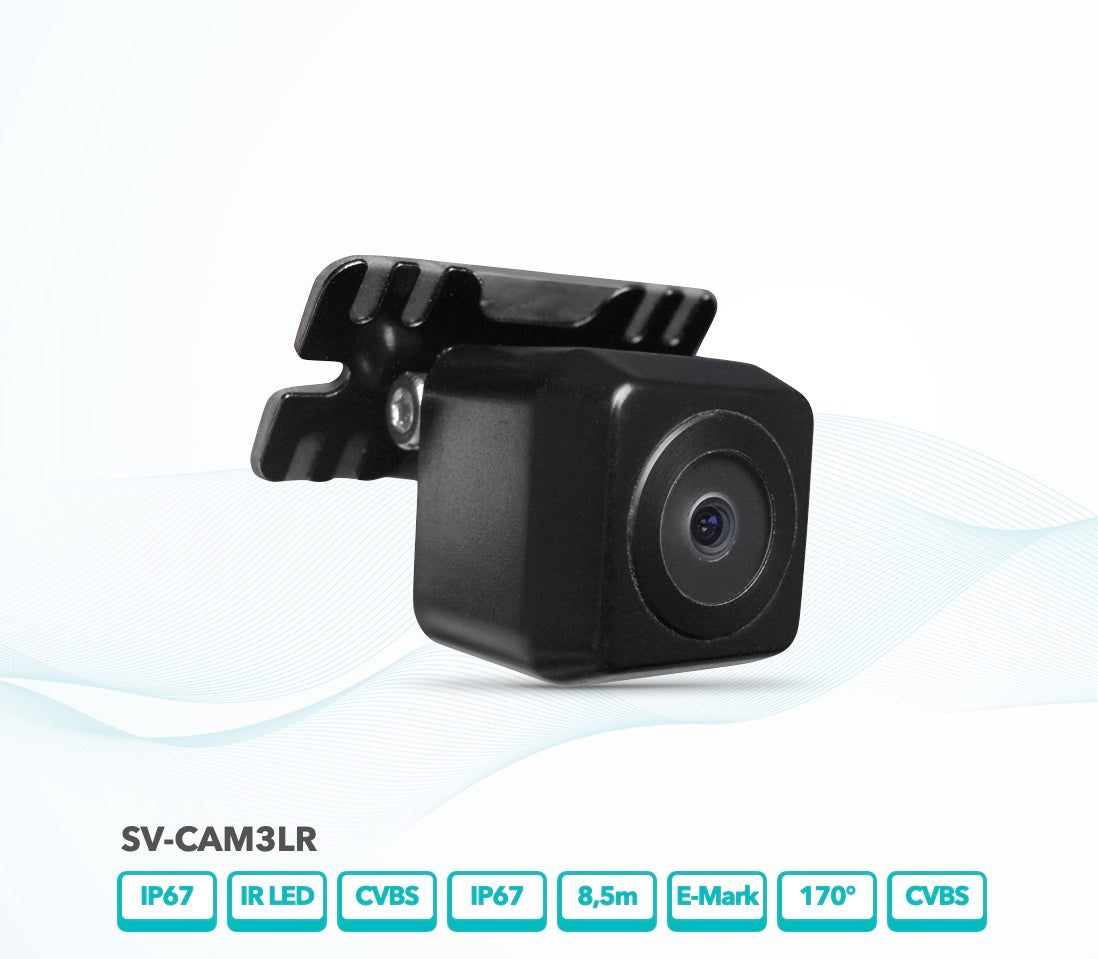

The SV-CAM3LR is a flexible universal fit camera with CVBS resolution to compete at a price. The CAM-3LR is a universal surface mounted rear-view camera with vertical adjustment, suitable for fitment to most cars and vans. Featuring a ¼” CMOS sensor, 480 TV Lines and 648 x 488pix resolution the camera provides a full colour high res image, with parking lines available to further assist the driver with rearward manoeuvres. The CAM-3LR is also IP67 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -30 degrees C to +65 degrees C.

• Image Sensor: 1/4” (6.35mm) CMOS
• TV Lines: 480
• Resolution: 648 x 488
• Minimum Illumination: 0.1 Lux
• TV system: NTSC
• Waterproof Rating: IP67
• Angle: 170 Degrees
• Parking Lines: Yes
• Enhanced Performance In Low Light: Yes
• Video Output: 1.0V p-p 75ohm
• Operating Voltage: DC9-16V (Negative Ground)
• Current Consumption: 106mA @ 13.8V
• Operating Temperature: -30 Degrees C to +65 Degrees C
