CAM-17

SV-CAM17

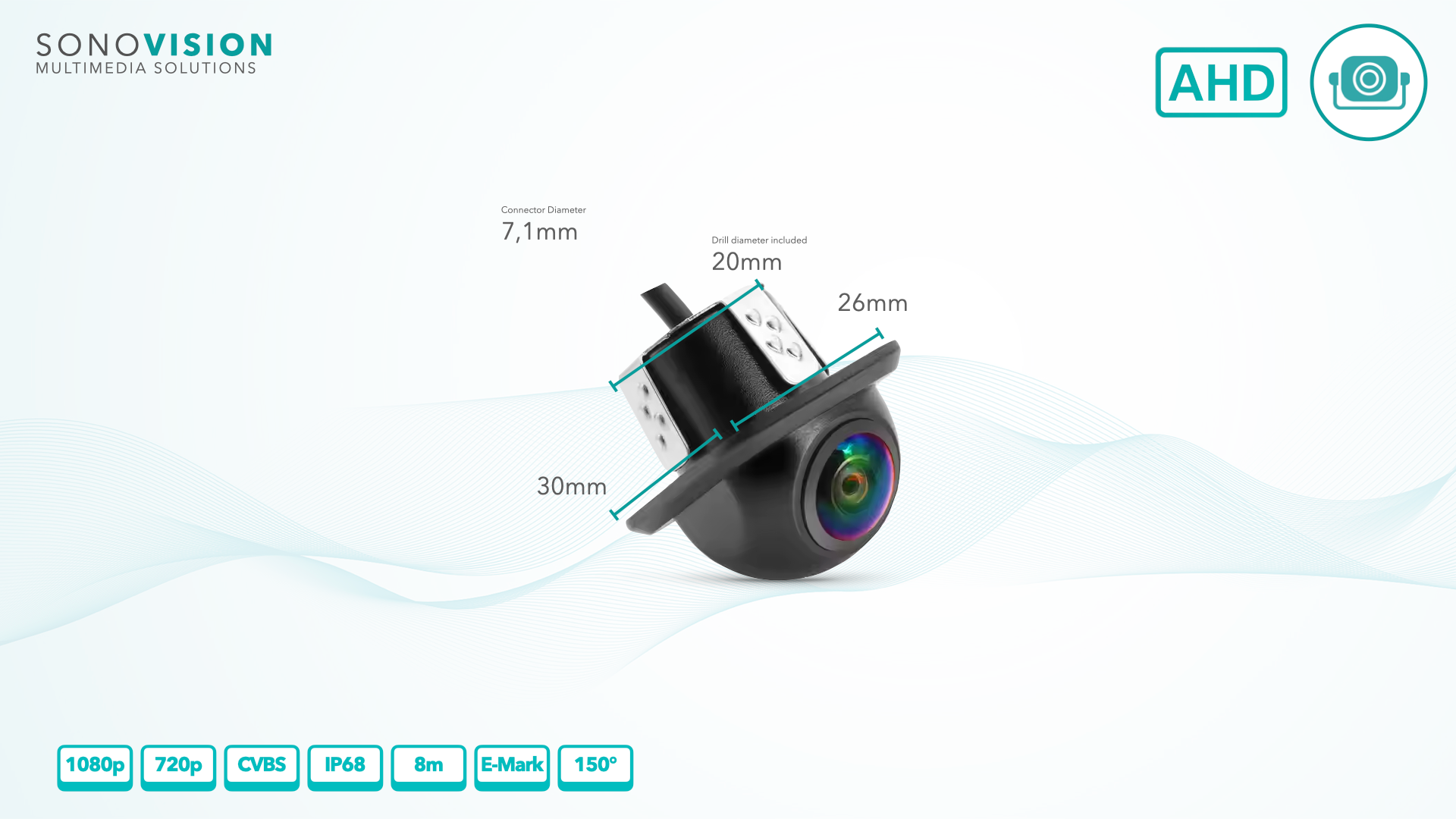

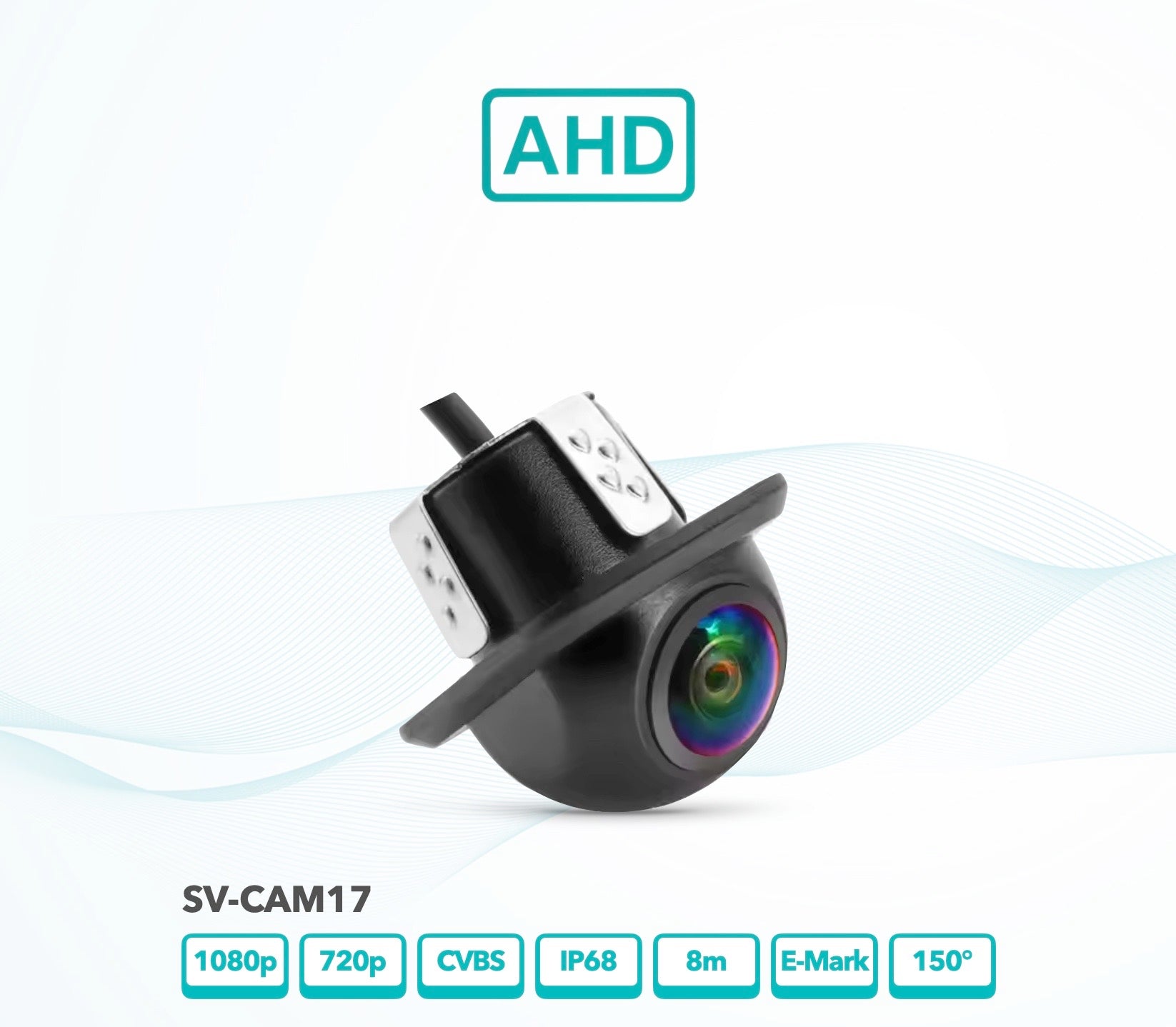

The SV-CAM17 is a universal, fixed angle surface mounted, reversing camera, compatible with most vehicles (cars and vans), it requires minimal illumination to operate and comes with a 150-degree viewing angle. This easy-fit rear-view camera’s AHD Resolution (switchable), 600 TV Lines and 1280x720pix resolution allow for a full-colour high-res image display. The SV-CAM17 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.

• CVBS / AHD switchable
• Image Sensor: 1/4" CMOS1336 CMOS/AHD
• TV System: NTSC
• Resolution: 600 TV lines
• Effective Pixels: 976 (H) x 496 (V) ; 1280 (H) x 720P (V)
• View Angle:150°
• Waterproof Grade: IP68
• Minimun illumination: 0.1Lux
• Video output: 1.0VP-P.750hm
• Power supply: DC 12V
• Operating Temperature: -20℃～70℃
• Storage Temperature: -30℃～70℃
• CE / E-mark / FCC / RoHS / UKCA certified

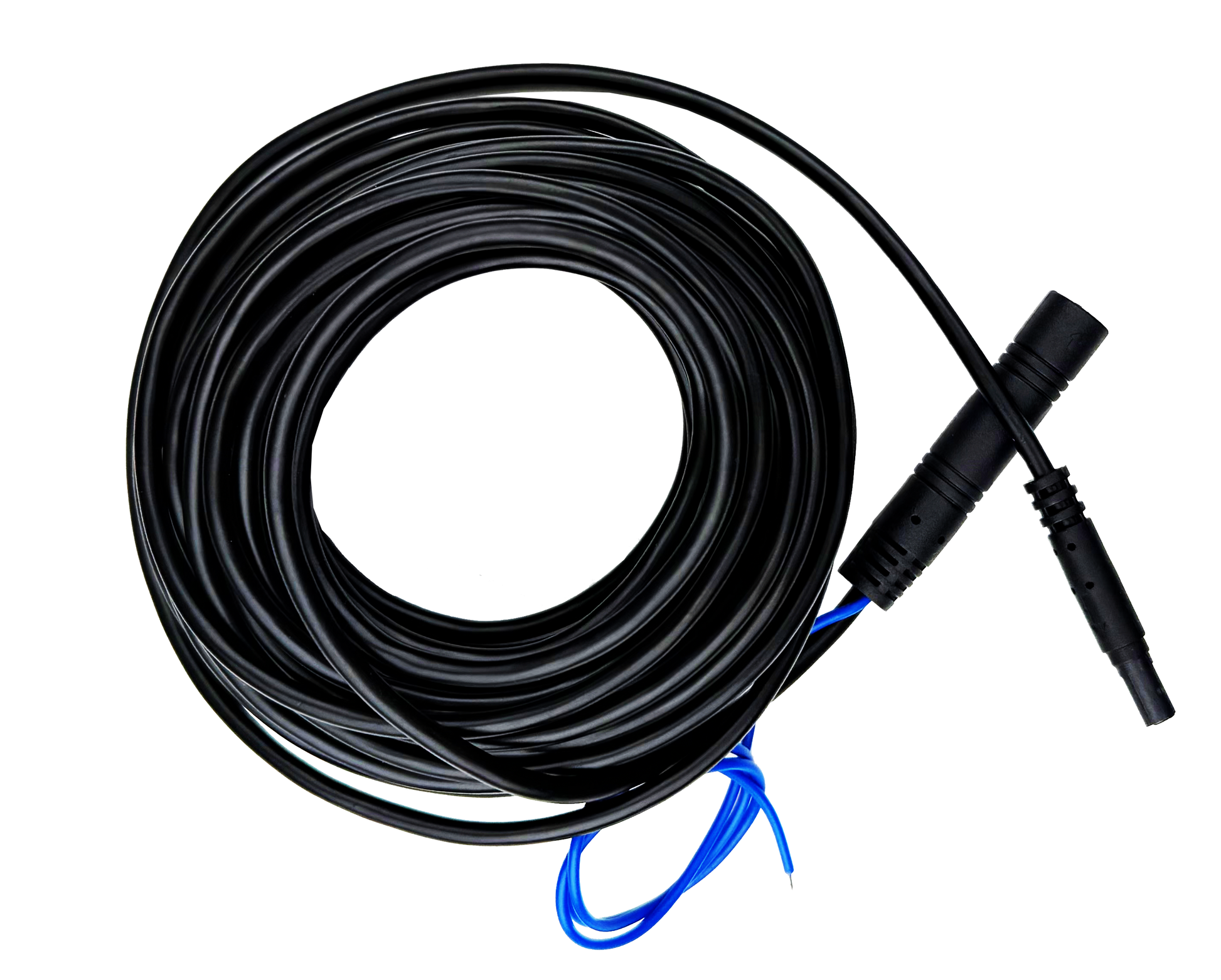

• 8 metre extension cable supplied
